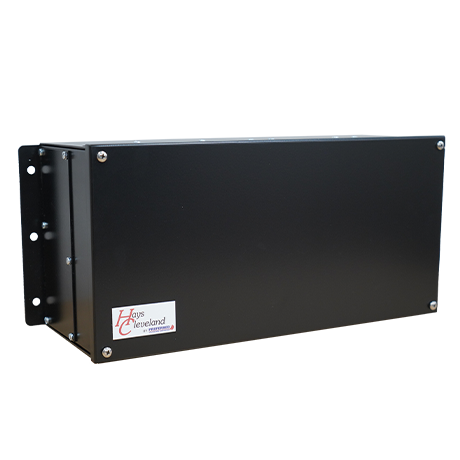

Linear Actuator HC-09130
Hays Cleveland Series HC-09130 Linear Actuators are compact and versatile. These compact units offer long life, safety, reliable operation, and easy maintenance. A full range of options is available for maximum flexibility in any open or closed loop combustion control or process control application.
- Compact, flexible design is suitable for combustion and process control applications.
- Stepping motor stops and starts instantaneously: eliminates coast and provides precision positioning.
- High starting torque overcomes static friction.
- Impedance-protected motor is not damaged if overload stalling occurs.
- Overview and Features
- Application
- Specifications
- Documents
Series HC-09130 Linear Actuators accept electrical line voltage signals from a switched output controller to position a final control element, such as a damper, control valve, louver, stoker lever, variable speed transmission, or any similar device, over a six-inch range of travel.
Hays Cleveland Series HC-09130 Linear Actuators require no mechanical brake assembly. The inherent braking-action of the synchronous stepping motor prevents overtravel without the wear and stress associated with friction or “DC” braking. As shown in the Specifications section of this bulletin, two stroke times and thrust ranges are offered for all models.
- Compact, flexible design is suitable for combustion and process control applications.
- Stepping motor stops and starts instantaneously: eliminates coast and provides precision positioning.
- High starting torque overcomes static friction.
- Impedance-protected motor is not damaged if overload stalling occurs.
- Standard 6” range of travel.
- 30 and 60 second nominal stroke times.
- 75 and 150 lb. thrust ranges. Equivalent to 18.75 and 37.5 lbs.
- Operates on switched line voltage input.
- Optional handwheel.
- Includes isolated adjustable start and end-of travel switches.
The line voltage signals control the reversible motor infinite increments to drive an acme screw through a nonslip timing belt drive and pulley system. The screw drives through a travel nut-and-bearing arrangement to extend or retract the drive tube. The nut and screw assembly self-locks in the case of power failure, in order to maintain final drive tube position.
End switches shut off power to the motor when the unit reaches either the inward or the outward travel extreme. All applications use the full six-inch travel of the drive arm. Linear or nonlinear movement of the final control element, as well as its total range of travel, is controlled by adjustment of the linkage connecting the actuator’s drive arm to the operating lever of the final control element. Overload stalling will not damage the motor.
Hays Cleveland Series HC-09130 Linear Actuators can be mounted in any position on any flat, rigid surface free from excessive vibration. All wiring connections are easily accessible for maintenance. The ambient temperature limit is 140F (60C).
Physical
Power Requirements: 120 VAC or 240 VAC, 50/60 Hz.
Motor: Commercially available 72 RPM stepping motor operated in synchronous mode.
Input Signal: Switched line voltage input.
Wiring Connections: Numbered screw-type terminals for power to motor and for all alarm and control connections.
Ambient Temperature: 0 to 140F (-19 to 60C).
Mounting: Any position.
Case Dimensions: 15.75” long x 7.5” wide x 5.75” high.
Linear Actuator Specification
Linear Actuator Cutsheet
Linear Actuator Instruction Manual
