Draft Range Differential Pressure Switch

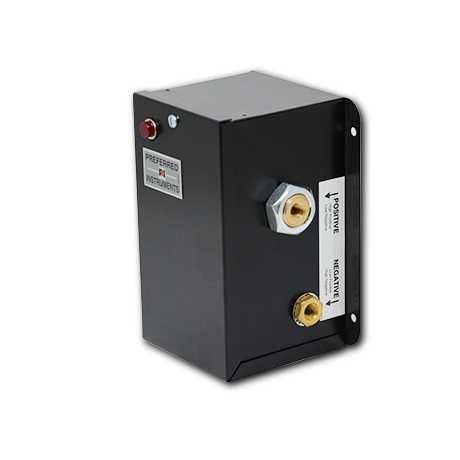

The JC-22-HDPCO-8  is a draft range differential pressure switch with red warning light and time delayed cutout relay contacts. The normally energized cutout relay contacts open when the differential pressure is higher than the setpoint for more than 8 seconds. The setpoint is field adjustable over the 0.05” to 9.0”wc range. The JC-22-HDPCO-8 is a direct replacement for the Hays Cleveland model # AFS-952-55-B.

  • Overview and Features
  • Application
  • Documents
Overview and Features

The JC-22-HDPCO-8  is a draft range differential pressure switch with red warning light and time delayed cutout relay contacts. The normally energized cutout relay contacts open when the differential pressure is higher than the setpoint for more than 8 seconds. The setpoint is field adjustable over the 0.05” to 9.0”wc range. The JC-22-HDPCO-8 is a direct replacement for the Hays Cleveland model # AFS-952-55-B.

Application

The most common application of the JC-22-HDPCO-8 is as a High Pressure Cutoff Switch for combustion draft control systems.High Positive Pressure Cutoff: Cutoff when positive pressure exceeds setpoint for more than 8 seconds.High Negative Pressure Cutoff: Cutoff when negative pressure exceeds setpoint for more than 8 seconds.High differential Pressure Cutoff: Cutoff when differential pressure exceeds setpoint for more than 8 seconds.

Documents

Draft Range Differential Pressure Switch Spec

Draft Range Differential Pressure Switch Cutsheet
