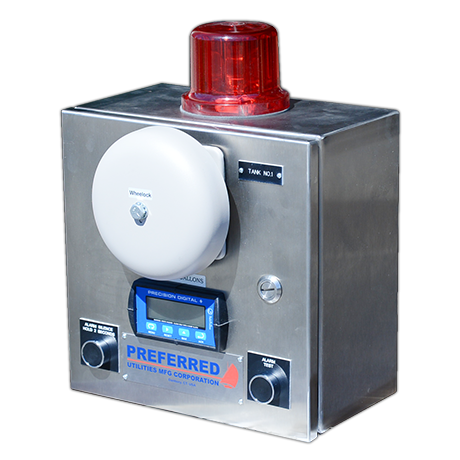

Overfill Alarm Station

FA-AV-SS

The Overfill Alarm Station, or Fil-A-Larm System, is constructed out of stainless steel, NEMA 4X rated moisture-proof and corrosion-proof enclosure, designed to be located near the tank fill terminal to notify of a potential overfill. It triggers a high-level alarm that alerts the filling operator that the tank is filled to its capacity.

  • Prevents Overfilling Of Fuel Oil Storage Tanks
  • Includes 6" Weatherproof Bell
  • Moisture Proof Stainless Steel NEMA 4X Enclosure
  • Overview
  • Application
  • Specifications
  • Documents
Overview

The Overfill Alarm Station, or Fil-A-Larm System, is constructed out of stainless steel, NEMA 4X rated moisture-proof and corrosion-proof enclosure, designed to be located near the tank fill terminal to notify of a potential overfill. It triggers a high-level alarm that alerts the filling operator that the tank is filled to its capacity.

  • Prevents Overfilling Of Fuel Oil Storage Tanks
  • Includes 6" Weatherproof Bell
  • Moisture Proof Stainless Steel NEMA 4X Enclosure
Application

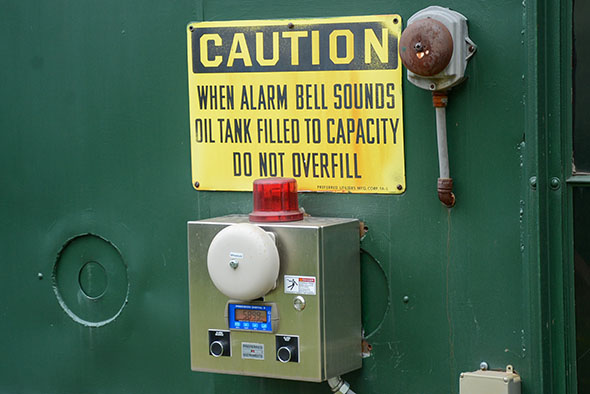

The Preferred Fil-A-Larm system is installed in conjunction with underground storage tanks and above ground main storage tanks.

It is designed to be located near the tank fill terminal to notify of a potential overfill.  It triggers a high level alarm that alerts the filling operator that the tank is filled to its predetermined capacity.  When an overfill alarm occurs, the alarm bell sounds and the corresponding alarm light flashes. The bell is automatically silenced in 90 seconds or instantly silenced when the operator selects the “Alarm Silence” pushbutton.  The visual alarm is highly visible even in direct sunlight.  The enclosure top mounted flashing lamp is visible from 180°.  A “Test” pushbutton is provided to verify the operation of the flashing alarm light(s) and bell.  The alarm automatically resets when liquid level goes below the overfill alarm setpoint.  A digital display of tank volume is available.

Specifications

Alarm Test: Verifies Flashing Alarm Light(s) And Bell

Construction: The Model Fil-A-Larm system is surface mounted, moisture proof stainless steel NEMA 4X Enclosure. The interior is prime coated and painted with a durable white enamel

Enclosure: Stainless Steel 12" W x 12" H x 6" D, NEMA 4X Construction

Audible Alarm: 6" 92 db bell

Visual Alarm: Lens 3 ¼" H, 4 ⅜" Dia. With 40 Watt Bulb

Alarm Silence Button: Silences Bell (Auto Time-Out Also)

Documents

FA-AV-SS Specification

FA-AV-SS Cutsheet

FA-AV-SS Diagram
