Vent Protectors

The Tank Vent Protectors conform to Standards for the Installation of Oil Burning Equipment (NFPA 31*) which governs the installation of fuel oil storage tanks.

  • Made Of Cast Aluminum
  • Wire Mesh Screen Included
  • Conforms To Standard For the Installation Of Oil Burning Equipment
  • Overview
  • Application
  • Documents
Overview

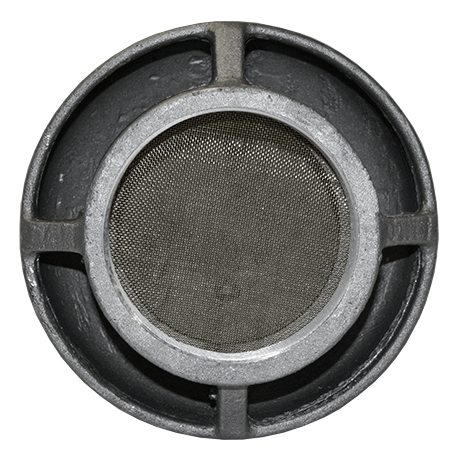

The Tank Vent Protectors (2" and larger) conform to Standards for the Installation of Oil Burning Equipment (NFPA 31*) which governs the installation of fuel oil storage tanks.  The Tank Vent Protectors are made of cast aluminum or iron and are threaded for standard pipe connection.  A wire mesh screen is included. Vent Protectors should be the full size of the vent line. NFPA 30** provides guidelines for sizing the vent line based on length of the line and the capacity of the pumps which fill and empty the tank.

  • Made Of Cast Aluminum
  • Wire Mesh Screen Included
  • Conforms To Standard For the Installation Of Oil Burning Equipment
Application

The Standard Tank Vent Protectors are made of cast aluminum or iron and are threaded for standard pipe connection. A wire mesh screen is included. Vent Protectors should be the full size of the vent line. NFPA 30 provides guidelines for sizing the vent line based on length of the line and the capacity of the pumps that fill and empty the tank.

Documents

Vent Protector Specification

Vent Protector Cutsheet
