RPV Head Lead Curtain Shield

Features:

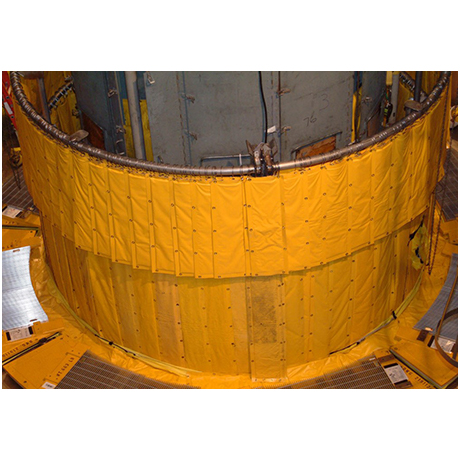

The Preferred Engineering RPV Head Shield Curtain is a multi-component system designed to create a radiation shield for PWRs. The Shield Curtain is designed to have levels of shielding to provide full height protection from a staged RPV Head. Lead blankets (typical) are bolted to cross members which provide the required attenuation. Each cross member can be individually loaded pre-outage and hung once inside the RCA. The sections are designed to fold into Transport/Storage boxes that facilitate movement into and out of the RCA.

Benefits:

• Curtain can be loaded using standard supplied Lead Wool blankets

• Blanket pieces are fixed between section strongback pieces with bolts

  • No hooks or tie wraps needed

  • Decreases Maintenance issues

• Storage boxes allow for shielding to be installed OUTSIDE containment reducing dose and avoiding critical path impact.
